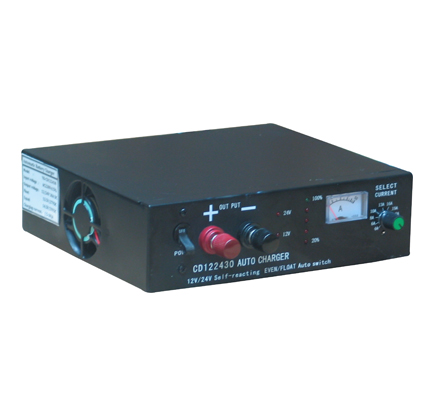

  • 12V/24V 30A Full Automatic Battery Charger
  • Product Model : YK-CD122430
  • Product Information :

    AC/DC compatible input:AC220V±15%, 50/60hz input Charge current:4A、6A、8A、10A、13A、16A、19A、22A、26A、30A total 10 levels optional Equal voltage:15.5V/31V (unsealed battery), 14.5/29VV (sealed battery) Floating voltage: 13.5V/27V Efficiency: ≥86%

  • Information

1.    Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:

  1. Big volume and high weight, not convenient for transportation and use
  2. Lacking protection function, bad reliability
  3. Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
  4. Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.

2.    Over discharge, over charge and longtime non full charge to battery will shorten the battery lifespan. So choose a good performance charger is very important.

3.    YK-CD Series full automatic battery charger uses the advanced non industrial frequency transformer switching power supply technology. It has small volume, low weight and high efficiency. Combining with the intelligent charge technology, it can prolong the lifespan of battery and full charge the battery. Over discharge protection, charging current adjustable, specially suitable for the unattended site.

4.   12V/24V 30A automatic battery float charger can connect with the battery to keep full charge long time. Suitable for assistant start-up power supply and complementary charge power supply such as car or generator etc.

5.    This full automatic charger suitable for the capability 12V/24V (201000)Ah unsealed or sealed battery, for charge temporarily and long time.

  • Character

A.    Advanced IC and components can ensure reliability and stability

B.    Charge battery strictly according to Charging Curve.

C.    The charging process is “(preset) constant current→(reach to equal charge constant voltage value)constant voltage reduce current→(automatic switch)float charge”.

With strongpoint such as fast speed, high efficiency, unattended, non over charge etc

D.    Charging current: 4A6A8A10A13A16A19A22A26A30A total 10 levels optional. When in constant current charging status, the current is constant. No need manual adjustment.

E.    AC wide range of input

F.    Intelligent temperature controlled fan and over temperature automatic shut off protection.

G.   Output short circuit protection and polarity reverse protection.

H.   12V/24V 30A automatic battery float charger suitable for assistant start-up power supply and complementary charge power supply such as car or generator etc.

  • Customize Range

Regard as the auto battery charger , We can customize different specification are as following

1.  Charge voltage: 3.6660)V, customize

2.  Charge current: different current optional, customized, max 2000A

3.  Max power 100kw

Model

Battery voltage

Input Voltage

Charge voltage

Charger current

Dimension

YK-CD122430

12V/24V

Single phase

13.5V/14.5V
27V/29V

4-30A
10 level for option

230*65*200

YK-CD122440

12V/24V

5-40A
10 level for option

230*65*200

YK-CD1280

12V

13.5V/14.5V

8-80A

253*68*268

YK-CD4820

48V

54V/58V

2-20A

253*68*268



YK-CD3050

12V/24V

Single phase

0-30V

0-50A

253*68*268

YK-CD6025

12V/24V/48V

0-60V

0-25A

253*68*268

YK-AD15010

12V/24V/48V
96V/120V

0-150V

0-10A

253*68*268



YK-CD1220

12V

Single phase

15V

20A

168*100*260

YK-CD2420

24V

30V

20A

180*120*300

YK-CD2430

24V

30V

30A

180*120*300

YK-CD3625

36V

45V

25A

200*175*320

YK-CD4820

48V

60V

20A

180*120*300

YK-CD4830

48V

60V

30A



YK-CD6010

60V

75V

10A



YK-CD7225

72V

90V

20A

215*185*360

YK-CD9625

96V

120V

25A



  • Specification

Model

YK-CD122430

AC/DC compatible input

AC220V±15%, 50/60hz input

Charge current

4A、6A、8A、10A、13A、16A、19A、22A、26A、30A total 10 levels optional

Charge process

Constant current—(constant voltage) equal charge reduce current—(constant voltage) floating charge

Equal voltage

15.5V/31V (unsealed battery), 14.5/29VV (sealed battery); user should give clear indication of it

Floating voltage

13.5V/27V

Battery voltage distinguish

Built-in a 18V valve value, less than 18V valve value, it’s 12V battery, more than 31V valve value, it’s 24V battery

Environment

Working temperature

(-20~50)℃

Store temperature

(-40~70)℃

Related humility

90%(40±2℃)

atmospheric pressure

(70~106)kPa

Dimension

232 mm *202 mm *70mm

Weight

NW: 3.5kg

Efficiency

≥86%

Power factor

≥0.85

Dielectric strength

Input to shell

≥AC1500V

Input to output

≥AC1500V

Output to shell

≥AC500V

MTBF

≥50000h

Over heat shutoff temperature

(75~80)℃
