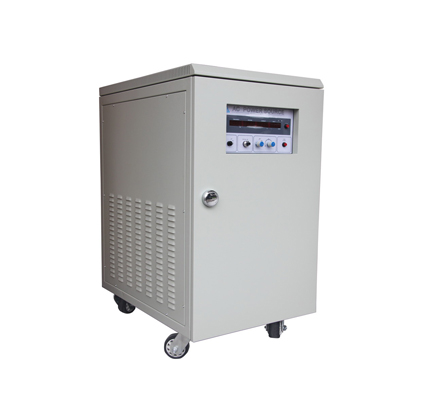

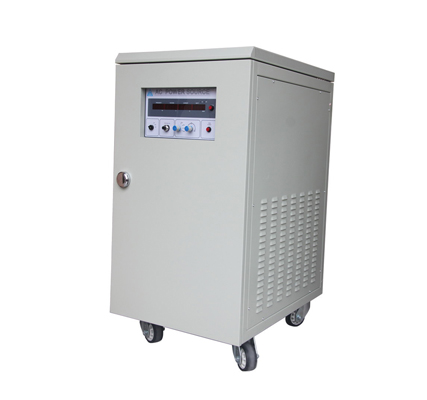

YK-BP83 Frequency converter
Product Model : YK-BP83 series
Product Information :
Input voltage:1 phase/3 phase Output voltage:3 phase AC Input frequency:50/60hz AC output Phase voltage:0-150v,0-300v Output frequency:50/60hz, 45-70hz, 400hz option Output capacity:0-600kva Output adjust type:knob type

Information

The 3 phase Frequency converter series of YK-BP83 high-voltage frequency converter is widely used in many kinds of professional fields. the product of YK-BP83 high-voltage frequency converter can provide customers the systematic solution of power supply: the consideration of electric environment, optimization of load collocation, matching of power supply selection, design of conforming to requirements, excelsior and highly efficient manufacture, timely and perfect maintenance, etc., all of which of YK-BP83 high-voltage frequency converter can fully meet customers’ requirements.

Character

1. Adopt discrete (independent), no power transformer structure, input no isolation and output isolation

2. High precision frequency stabilizing and voltage stabilizing, knob-type quick adjustment voltage and frequency

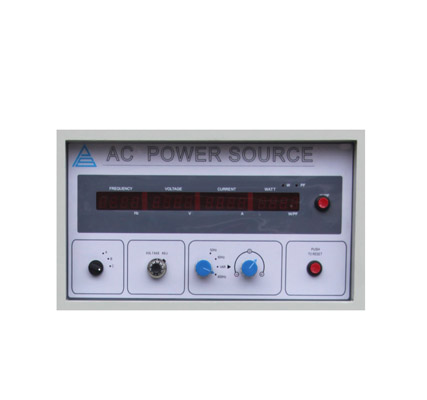

3. High precision LED digital gaugehead display: voltage, current, Frequency, active power and power factor (A, B and C phases can be switched)

4. Fast transient response speed to 100% load/unload, and the response time of stabilized voltage response time within 2MS

5. Output frequency: 50Hz, 60Hz and 47～70Hz , 400Hz, load frequency rate ±0.1%

6. Output voltage: phase voltage 0~300V (line voltage 0~520), can simulate voltages from all countries in the world

7. Phase difference: 120°± 2°

8. It has multiple protections such as overvoltage, over current, overload, over temperature, etc and alarm functions

Application

For civil use, for industrial use, for military or aircraft use etc.

Customize Range

Regard as the frequency converter , we can customized different specification are as following

Ø 1phase/3phase input

Ø 1phase/3phase output

Ø 50hz, 60hz, 45-70hz, 400hz available.

Ø With 1-200KVA capacity.

For civil use, for industrial use, for military or aircraft use etc.

Model	Input voltage	Output voltage	AC Input frequency	AC output Phase voltage	Output frequency	Output capacity	Output adjust type
YK-BP81 Series	1phase/3 phase	1 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-200kva	Knob type
YK-BP80 Series	1phase/3 phase	1 phase	50/60hz	0-150v 151-300v	47-63hz 220v/50hz, 110v/60hz, 120v/60hz	0-200kva	Press key type
YK-BP83 Series	1phase/3 phase	3 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-600kva	Knob type
YK-BP88 Series	1phase/3 phase	1phase/3 phase	50/60hz	0-150V 0-300V	400hz for military or aircraft	0-600kva	Knob type

Specification

Model
YK-BP** Series

8303

8306

8310

8315

8320

8330

8345

8360

83100

83120

83400

83500

83600

Rated Capacity (KVA)

100

120

400

500

600

Phase Capacity (KVA)

3.3

134

167

200

AC Input

Single phase 220V/50Hz,60Hz

Tri phase 380V/50Hz,60Hz

AC Output

Phase

Trip phase (phase difference 120°±2°)

Output Frequency

45Hz～70Hz，50 Hz，60 Hz，400 Hz；

AC Voltage Output

Low Range

Phase voltage：0V～150V （line voltage：0V～260V）

High Range

Phase voltage：0V～300V （line voltage：0V～520V）

Max Current output

0~150V

8.4A

16.8A

28A

42A

50A

84A

125A

168A

276A

336A

1112A

1400A

1667A

0~300V

4.2A

8.4A

14A

21A

25A

42A

63A

84A

138A

168A

556A

700A

833A

Frequency Stability Rate

≤±0. 1%

Load Stability Rate

±0.5%

Waveform Distortion

≤±2%（resistance load）

Response Time

≤2ms

Indication Resolution

Digit Frequency

4 digit resolution 0.1Hz

A、B、C
phase can
change optionally

Digit Voltage

4 digit resolution 0.1V

Digit Current

4 digit resolution: below 4A：0.001A ; above 4A：0.01A

Digit Power

4 digit resolution 1W

Protection

Input no fuse switch, output fuse switch, electronics circuit
speed detect the over voltage, over current, over load, over
temperature, short circuit
and automatic jump protection and alarm.

Cooling

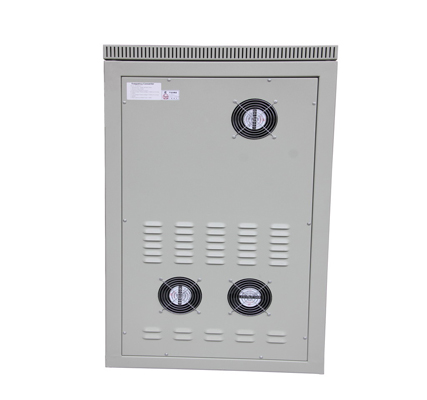

Forced fan cooling

Environment

Operation Temperature

0℃～45℃

Relative Humility

0～90%（non condensing ）

Working Temperature

0℃~45℃, Relative 0～90%（ non-coagulation state ）

Shape

Dimensions (mm)

190*
305*
430

280*
450*
500

620*
320*
620

950*
560*
650

700*
1340*
1280

1700*
1750*
1000

1650*
850*
1090

1650*
800*
1200

Weight(Kg)

140

170

280

650

1050

1250

1350

1450
