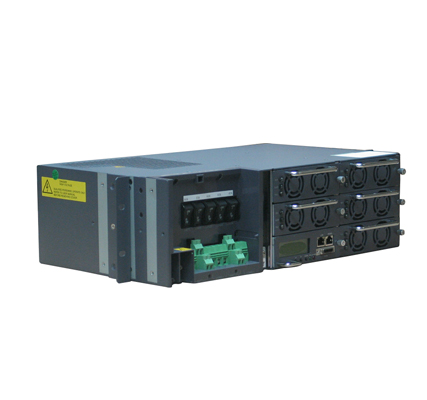

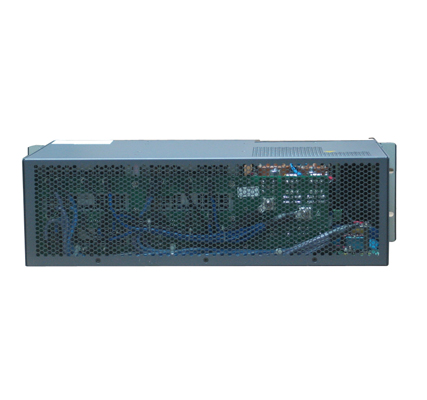

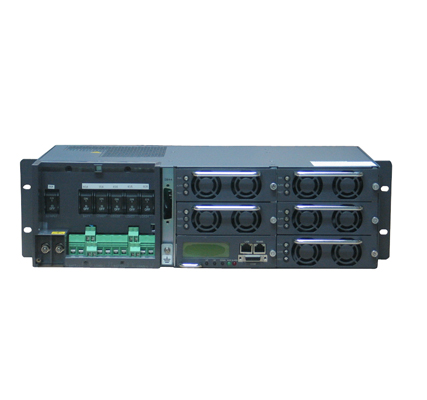

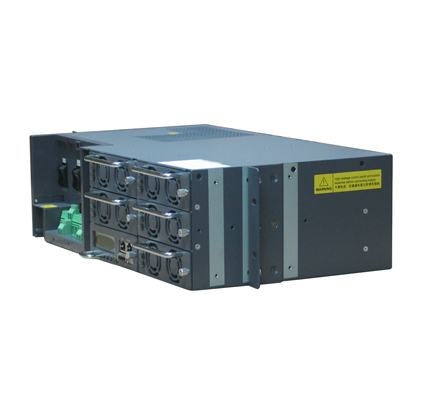

  • 48vdc 150A 3U Rack rectifier system
  • Product Model : YK-GPE48150-3U
  • Product Information :
    AC input voltage range: 90VAC-285VAC
    DC input voltage range: 100DC-400VDC
    Maximum input current: 40A
    Input frequency range: 45Hz-66Hz
    Power Factor: ≥0.99
    effectiveness: ≥92%
    Rated output voltage: 48VDC
    Rated output voltage range: 43VDC-58VDC
    Output rated current: 0A-150A
  • Information
    • 1.Small size, height 3U, 4 *30A rectifier module
    • 2.Configurable module: 10A, 15A, 20A, 30A for option
    • 3.The standard 19-inch installation
    • 4.Improve monitoring and management and battery management
    • 5.The product of 48vdc 150A 3U SMPS Rectifier system can provide RS485 communication interface
    • 6.8 channel load output or 6 channel load output, 2 channel battery input
    • 7.Battery anti-reverse function
    • 8.Under electrical function
    • 9.The product of 48vdc 150A 3U SMPS Rectifier system can support hot-swappable
    • 10.The energy-saving sleep function
    • 11.The independent design of lightning protection unit (optional)
    • 12.The power supply of 48vdc 150A 3U SMPS Rectifier system can be installed in any 19-inch rack independently
    • 13.6- channel dry contact output



  • Application

l  Small scale program controlled exchanges

l  Access network

l  Transmission equipment

l  Mobile communication

l  Satellite communication ground station

l  Microwave communication

  • Customize Range



A Whole Rectifier System is composed of following item

No.

QTY

Item name

Noted

1

1pc

Rack Mount

1U/2U/3U**11U or cabinet option

2

1pc

Monitor Module

With LCD or without LCD Display option

3

*pc

Rectifier Module

10A/20A/30A/50A option
*mean different QTY. for Example 2/3/4/5/6…pc.

4

1pc

DC Distribution

Stand alone DC Distribution or build in the system option

Customized Range

Model

Rectifier module

Monitor module

Load channel

Battery channel

Rack

YK-GPE4820

2×10A

1

1 channel

1 channel

1U

YK- GPE4830

2×15A

1

1 channel

1 channel

1U

YK-GPE4840

2×20A

1

1 channel

1 channel

1U

YK-GPE4860

2×30A

1

1 channel

1 channel

1U

YK-GPE4860

2×30A

1

4 channel

1 channel

2U

YK-GPE4890

3×30A

1

4 channel

1 channel

2U

YK-GPE48120

4×30A

1

5 channel

1-2 channel

3U

YK-GPE48150

5×30A

1

5 channel

1-2 channel

3U

YK-GPE48200

4×50A

1

10 channel

1-2 channel

6U



  • Specification

AC input voltage range

90VAC-285VAC

DC input voltage range

100DC-400VDC

Maximum input current

40A

Input frequency range

45Hz-66Hz

Power Factor

≥0.99

effectiveness

≥92%

Rated output voltage

48VDC

Rated output voltage range

43VDC-58VDC

Output rated current

0A-150A

Regulation accuracy

≤±0.6

Peak to peak

≤200mV

Equal current

≤5%

Dimensions

482.6mm*13.2*300mm
