48Vdc to 220Vac Pure Sine Wave Inverter
Product Model : YK-DA-HT series
Product Information :
1.new DC to AC conversion power supply. 2.widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc. 3.ultra-reliable ，work continuously in long time. 4.can solve the limitation of short backup time of UPS. ensure the continually and reliable working of electro-equipments.

Information

1.Along with the quick development of information network technology, Inverter / Power Inverter / Inverter Power Supply is a new DC to AC conversion power supply.

2.The inverter power supply is widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc.

3.Use the battery DC as input, after inverting,it will output the pure sine wave AC. The output voltage and frequency is ultra-reliable and and work continuously in long time. Inverter can eliminate the disadvantage such as power interrupt, un constant voltage, noise interfere and surge etc.

4.At the same time, Inverter can solve the limitation of short backup time of UPS. So Inverter can ensure the continually and reliable working of electro-equipments.

Character

YK-DA-HT series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which can invert the DC to AC, special design for the electric power system.

1. Software protection and hardware protection, high reliability

2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function

3. 3 Layers composite filter and magnetism shielded which and reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.

4. Intelligent Fan

5. Can connect with pure sensibility load (Should reduce voltage)

Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage	Capacity

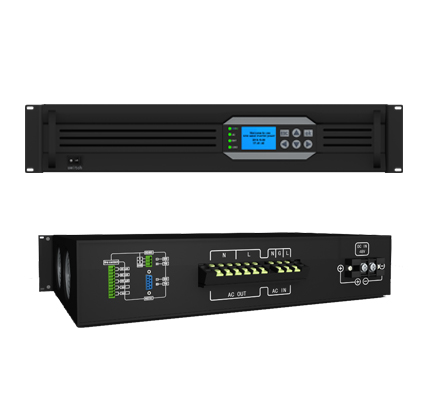

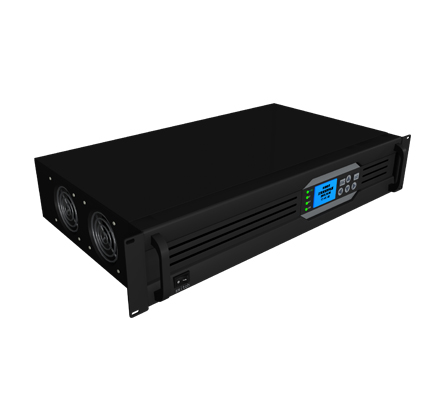

19Inch 2U/4U Rack Mount With LCD+LED Display With RS232 Communication port Power Factor 0.8
220vac output design
24vdc-220vac	1-5KVA
48vdc -220vac	1-6KVA & 8KVA
110vdc -220vac	1-6KVA & 8KVA
220vdc-220vac	1-6KVA & 8KVA& 10KVA
120vac output design
24vdc-220vac	1-5KVA
48vdc -220vac	1-6KVA
110vdc -220vac	1-6KVA

Order List for 220VAC output design

Model	DC Main Input	AC bypass Input	AC Output & Frequency	Capacity	Noted
48VDC to 220VAC 1-8KVA
YKDA-HT1000	48VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA
YKDA-HT4000				4KVA	2U/19inch 48243088(mm)
YKDA-HT5000				5KVA
YKDA-HT6000				6KVA

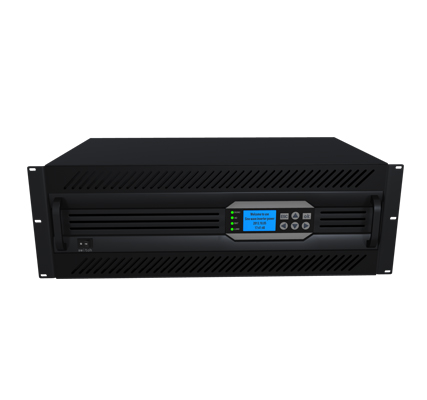

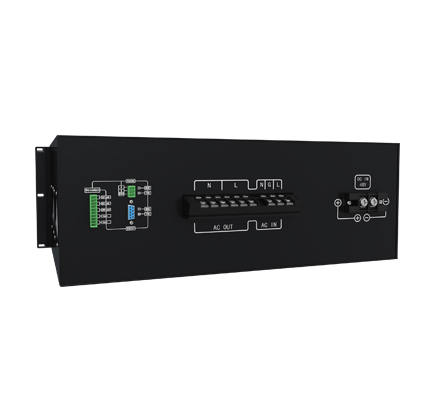

YKDA-HT8000				8KVA	4U/19inch 482480176(mm)
110VDC to 220VAC 1-8KVA
YKDA-HD1000	110VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA
YKDA-HD4000				4KVA	2U/19inch 48243088(mm)
YKDA-HD5000				5KVA
YKDA-HD6000				6KVA
YKDA-HD8000				8KVA	4U/19inch 482480176(mm)
220VDC to 220VAC 1-10KVA
YKDA-HD1000	220VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA
YKDA-HD4000				4KVA	2U/19inch 48243088(mm)
YKDA-HD5000				5KVA
YKDA-HD6000				6KVA
YKDA-HD8000				8KVA	4U/19inch 482480176(mm)
YKDA-HD10000				10KVA	4U/19inch 482480176(mm)
24VDC to 220VAC 1-5KVA
YKDA-HT1000	24VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA
YKDA-HT4000				4KVA	2U/19inch 48243088(mm)
YKDA-HT5000				5KVA	2U/19inch 48243088(mm)

Order List for 120VAC output design

Model	DC Main Input	AC bypass Input	AC Output & Frequency	Capacity	Noted
24VDC To 120VAC (1-5KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA	19Inch 4U 482480176(mm)
YKDA-HT5000				5KVA
48VDC to 120Vac (1-6KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA
YKDA-HT5000				5KVA	19Inch 4U 482480176(mm)
YKDA-HT6000				6KVA
110VDC to 120Vac (1-6KVA)
YKDA-HD1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 562492195(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA	19Inch 2U 575562195(mm)
YKDA-HD4000				4KVA
YKDA-HD5000				5KVA	19Inch 4U 590570420(mm)
YKDA-HD6000				6KVA

Specification

Model(YKDA-HT***)

500

1000

2000

3000

4000

5000

6000

8000

Rate Capacity(KVA)

0.5

Rate power(W)

400

800

1600

2400

3200

4000

4800

6400

DC Input

Rate input voltage

48V

Rate input Current

100

125

150

175

Shut down voltage range

40V～60V

Start-up voltage range

46V～57V

Reflect noise current

≤10%

AC Input

Allow bypass voltage

220Vac±15%

Rate input Current

2.3

4.5

9.1

13.6

18.1

22.7

37.2

41.7

Bypass switch time (ms)

≤5ms

AC Output

Rate output voltage and frequency

220Vac,50Hz

Waveform

Pure Sine Wave

Rate output current

1.8

3.6

7.2

10.8

14.4

19.6

23.2

Output voltage precision

220VAC±1.5%

Output frequency precision (Hz)

50Hz±0.1%

Waveform distortion (THD)

≤3% (linear load)

Dynamic respond time

5% (Load0←→100%)

Power factor (PF)

0.7/0.8

Overload ability

120%,30s

efficiency

≥85%

Operating environment

Insulating intensity

1500Vac,1min

Noise (1m)

≤40dB

Operation temperature

-5℃～40℃

Humility

0～90%, non condensing

Operation altitude

≤1000m

Cooling mode

Forced wind cooling

Inverter status

Mains supply is normal, invert normal, battery under voltage, output overloading

Dimension

19Inch(2U) (mm)

482*88.8*252

482*88.8*352(mm)

482*88.8*382(mm)

Weight

5Kg

7 Kg

8 Kg

11 Kg

13 Kg

Standalone type(W*H*L)

175*274*452(mm)

220*330*452(mm)

Weight

8 Kg

9 Kg

12 Kg

15 Kg

Color

White

Protect function

Input under/over voltage, output overloading, short circuit, city power high-low voltage protection

Output mode

Socket or terminal block

Terminal block
