12Vdc to 120/220V Series

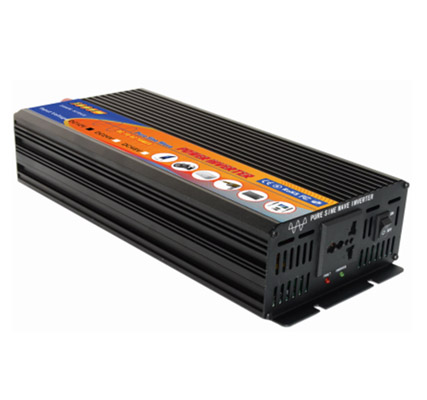

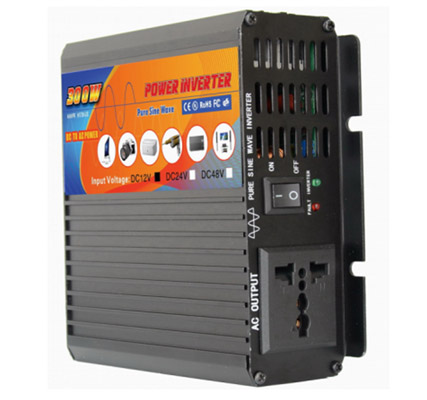

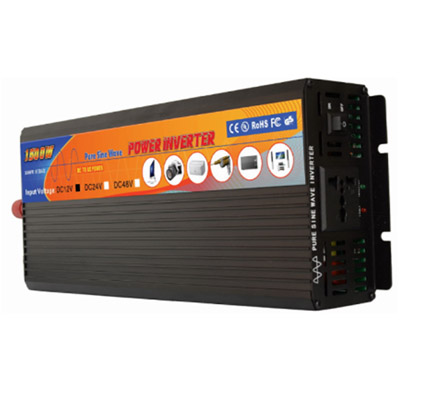

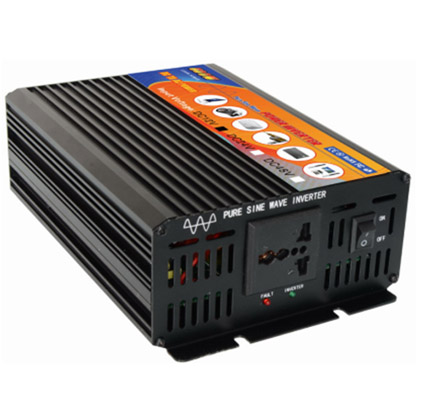

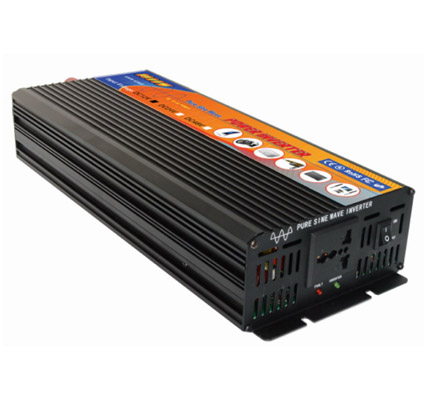

Product Model : YK-**Z-12 Series
Product Information :
YK-****Z-12 12Vdc-120/220vac 60/50hz 300W-4000W Pure Sine Wave Inverter 1. Input rate voltage: 12Vdc 2. Input range voltage : 10-15Vdc 3. Output : 220Vac 50hz or 120Vac 60hz 4. YK-300Z-12 Rate power : 300w , Peak power 600w 5. YK-600Z-12 Rate power : 600w , Peak power 1200w 6. YK-1000Z-12 Rate power : 1000w , Peak power 2000w 7. YK-1500Z-12 Rate power : 1500w , Peak power 3000w 8. YK-2000Z-12 Rate power : 2000w , Peak power 4000w 9. YK-3000Z-12 Rate power : 3000w , Peak power 6000w 10. YK-4000Z-12 Rate power : 4000w , Peak power 8000w 11. Pure Sine Wave Inverter

1. Efficiency: Up to 95%

2. The service life of 12vdc/24vdc/48vdc -220vac home use inverter can reach a decade

3. The working noise of 12vdc/24vdc/48vdc -220vac home use inverter is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability: Inductive and capacitive load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/

7. Output Short/Input polarity reverse/Overload

1. Solar electric energy generation;

2. Wind power generation;

3. In-car or on-boat devices series

4. Communication equipment;

5. Industrial control system;

6. Small power supply system.

Regard as the pure sine wave inverter for telecom, we can customize below range

Model YK-Z-12 Series*	300Z-12	600Z-12	1000Z-12	1500Z-12	2000Z-12	3000Z-12	4000Z-12
DC Input
Rate voltage	12Vdc
Range voltage	10-15Vdc
Output
Output Voltage	220Vac±5％
Output Frequency	50Hz±0.1%
Wave	Pure Sine wave
Output Power	300W	600W	1000W	1500W	2000W	3000W	4000W
Peak Power	600W	1200W	2000W	3000W	4000W	6000W	8000W
Conversion Efficiency	>90%
Protect function
Function-1	Input reverse connection protection: Fuse
Function-2	Input low voltage protection : 10Vdc±0.5V
Function-3	Input high voltage protection: 15Vdc±0.5V
Function-4	Over temperature protect: >75℃
Over load protection	320W	620W	1100W	1600W	2100W	3100W	4100W
Temperature
Storage temperature	-20～+70℃
Working temperature	-5～+45℃
Cooling method	Intelligent temperature controlled air cooling
Mechanical properties
Input terminal	Red/black copper terminal
Output socket	Universal socket
Housing material	Aluminum
Dimension(mm)	15052135	15070203	15070313	15070343mm		258132386mm
Net weight(kg)	0.9kg	1.8kg	3kg	4kg	4.5kg	11kg	11.5kg
