60Vdc to 12Vdc（1-20A）
Product Model : YKDD60S12**Series
Product Information :
A. Input Voltage: 60vdc(20-75vdc) B. Output Voltage: 12Vdc C. Output Current: 1-20A D. Non-Isolated design /Constant voltage design/Waterproof E. High efficiency

1.Constant voltage design

2.SMT Process

3.Non-Isolated Module

4.2:1 wide input range

5.Built-in EMI filter, low ripple noise

6.100% full load burn-in test

7.Certificates :CE

8.Waterproof level : IP67

9.Protections: Short circuit/Over load /voltage / Automatic recovery work

10.Ultra compact size, light weight , high reliability

11.1 year warranty, lifetime up to 100,000 hours

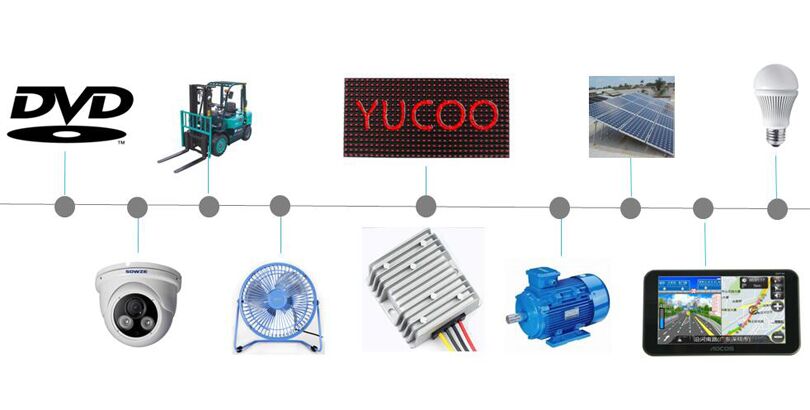

1.Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts

2.Navigation, surveillance, Air conditioning

3.LED car display, DVD, LED lights, Audio

4.Wind Power System, Solar Power System, Photo voltaic energy

5.Electrical appliances, industrial equipment, telecommunications and so on.

Type	Model	Voltage convert Input to output	Output Current (Be option)
Boost DC-DC Converter	YKDD5S12** Series	5vdc to 12vdc	1~10A
	YKDD12S13.8** Series	12vdc to 13.8vdc	1 ~18A
	YKDD12S15** Series	12vdc to 15vdc	1~15A
	YKDD12S19** Series	12vdc to 19vdc	1~15A
	YKDD12S24** Series	12vdc to 24vdc	1~21A
	YKDD12S27/28 Series	12vdc to 27vdc/28vdc	1~10A
	YKDD12S32/36** Series	12vdc to 32vdc/36vdc	1~8A
	YKDD12S48** Series	12vdc to 48vdc	1~6A
Sep down DC-DC Converter	YKDD1224S3.3-9** Series	12vdc/24vdc to 3.3-9vdc	1~30A
	YKDD24S12** Series	24vdc to 12vdc	1 ~30A
	YKDD3648S5** Series	36vdc/48vdc to 5vdc	1~25A
	YKDD3648S12** Series	36vdc/48vdc to 12vdc	1~25A
	YKDD3648S24** Series	36vdc/48vdc to24vdc	1~21A
	YKDD48S36** Series	48vdc to36vdc	1~10A
	YKDD60S5** Series	60vdc to5vdc	1 ~20A
	YKDD60S12** Series	60vdc to12vdc	1 ~15A
	YKDD60S24** Series	60vdc to24vdc	1 ~10A
	YKDD60S36 Series	60vdc to 36vdc	1 -8A
Automatic Step down and Boost DC-DC Converter	YKDD12S12 Series	12vdc to 12vdc	1-12A
Automatic Step down and Boost DC-DC Converter	YKDD24S24 Series	24vdc to 24vdc	1-10A
Note: Output current be option only but not constant adjustable Other Specification can customize base on user request. Please contact with YUCOO Sale team

Model YK-DD60S12*	5	10		15
Input
Rate voltage	60Vdc
Input voltage	20-75Vdc
Output
Rate voltage	12vdc±0.25vdc
Rate current	5A	10A		15A
Rate power	60W	120W		150W
Conversion efficiency	>90%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	< 60mA
Working temperature	-20~80℃
Waterproof rating	IP67
Protection	Over-current / voltage / load protection
	Overheat protection
	Lower voltage protection
	Intrusion protection
	Short-circuit protection and automatic recovery
	Full waterproof potting

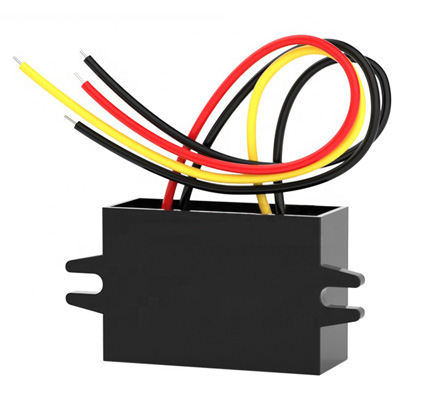

Dimension	Small & thin plastic shell		SIZE : 462714mm		NW: 30g
	Middle plastic shell		SIZE : 463218mm		NW: 50g

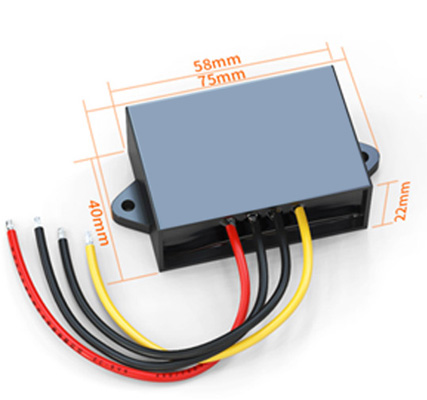

	Large plastic shell		SIZE : 584022mm		NW: 97g

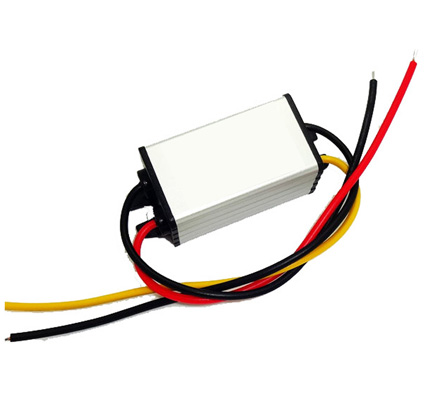

	Small aluminum shell		SIZE : 43.524.520.5mm		NW: 45g

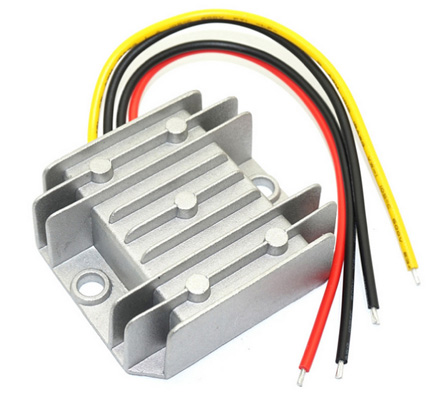

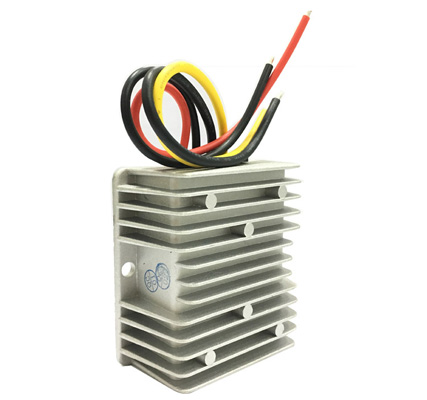

	Large aluminum shell		SIZE : 747432mm		NW: 250g
Install cable	13-15(cm)
