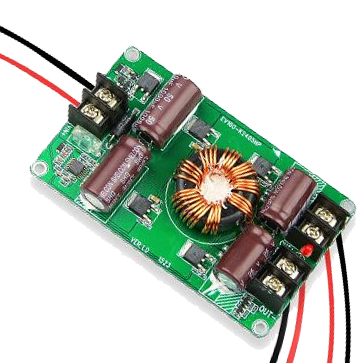

  • 12/24Vdc to 5Vdc（1-30A）
  • Product Model : YKDD1224S5**Series
  • Product Information :
    A.Input Voltage:12/24vdc(8-40vdc) B.Output Voltage:5V C.Output Current:1-30A D.Non-Isolated design /Constant voltage design/Waterproof E.High efficiency
  • Character

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. 2:1 wide input range

5. Built-in EMI filter, low ripple noise

6. 100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage / Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

  • Application

1. Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts

2. Navigation, surveillance, Air conditioning

3. LED car display, DVD, LED lights, Audio

4. Wind Power System, Solar Power System, Photo voltaic energy

  • Customize Range

BUCK DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD1224S5**

12V/24V

5V

3A|5A|10A|15A|20A|30A|40A|50A|60A

YK-DD24S12**

24V

12V

1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A

YK-DD24S13.8**

24V

13.8V

5A|10A|15A|20A|30A|40A|50A|60A

YK-DD24S19**

24V

19V

5A|10A|15A

YK-DD36S12**

36V

12V

5A|10A|15A|20A|30A|50A|60A

YK-DD48S5**

48V

5V

5A|10A|15A|20A

YK-DD48S12**

48V

12V

5A|10A|15A|20A|30A|50A|60A

YK-DD48S13.8**

48V

13.8V

5A|10A|15A|20A|30A|40A|50A|60A

YK-DD48S19**

48V

19V

5A|8A|10A

YK-DD48S24**

48V

24V

3A|5A|10A|15A|20A|30A|40A|50A

YK-DD60S12**

60V

12V

5A|10A|15A

YK-DD60S24**

60V

24V

5A|10A

BOOST DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD12S24**

12V

24V

1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A

YK-DD12S19**

12V

19V

5A|8A|10A|15A|20A

YK-DD12S28**

12V

28V

3 A|5A|8A|10A|15A|20A|25A|30A|40A

YK-DD12S36**

12V

36V

1A|2A|3A|5A|6A|8A|10A|20A|30A|40A

YK-DD12S48**

12V

48V

1A|2A|3A|4A|8A|10A|15A|20A

YK-DD24S48**

24V

48V

3 A|5A|10A|20A|30A|40A

YK-DD24S36**

24V

36V

5A

BUCK& BOOST DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD12S12**

8-40V

12V

1A|2A|3A|5A|6A|10A|15A|20A|25A

YK-DD12S13.8**

8-40V

13.8V

3A|5A|10A|15A|20A|25A

YK-DD24S24**

9-40V

24V

2A|3A|4A|6A|10A|15A

ISOLATED BUCK DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD48S12**

35-100V

12V

8A|10A

YK-DD48S5**

36-75V

5V

15A|20A

YK-DD48S24**

36-75V

24V

5A

AC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-ACD12S12**

10-28V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S12**

15-28V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S5**

8-28V

5V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S24**

22-28V

24V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S5**

AC8-38V

5V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S12**

AC15-38V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S24**

AC32-38V

24V

1A|2A|3A|5A|6A|8A|10A
  • Specification

Model YK-DD1224S5*

10

15

20

25

30

Input

Rate voltage

12VDC/24Vdc

Input voltage

8-40Vdc

Output

Rate voltage

5vdc±0.25vdc

Rate current

10A

15A

20A

25A

30A

Rate power

50W

75W

100W

125

150W

Conversion efficiency

>90%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load  current

< 60mA

Working temperature

-20~80℃

Waterproof rating

IP67

USB Portoption
(9 type design for option)

Dual cable +Dual USB
Dual cable output+ dual USB with install hole
Dual cable + Dual USB female port
Dual USB female port
micro port
mini P5 PORT
USB female port with install hole
USB Female port
USB+MICRO

Protection

Over-current  /  voltage  /  load protection

Overheat protection

  Lower voltage protection

Intrusion protection

Short-circuit protection and automatic recovery

Full waterproof potting

Dimension

Small & thin plastic shell

SIZE : 46*27*14mm

NW: 30g

Middle plastic shell

SIZE : 46*32*18mm

NW: 50g

Large plastic shell

SIZE : 58*40*22mm

NW: 97g

Small aluminum shell

SIZE : 43.5*24.5*20.5mm

NW: 45g

Large aluminum shell

SIZE : 74*74*32mm

NW: 250g

Install cable

13-15(cm)
