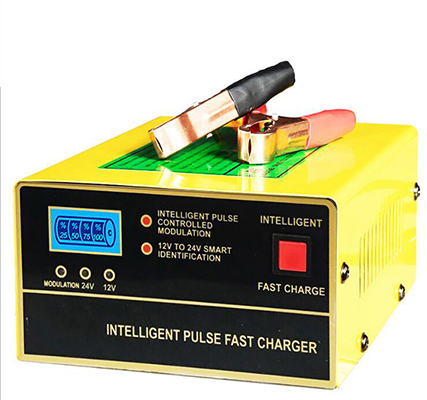

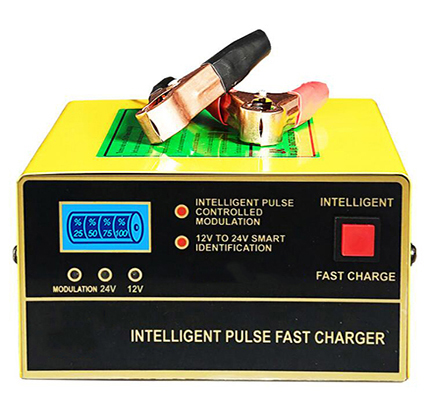

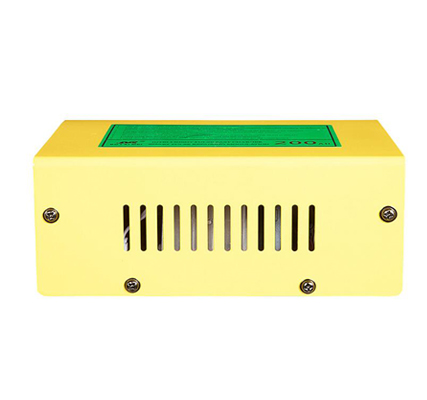

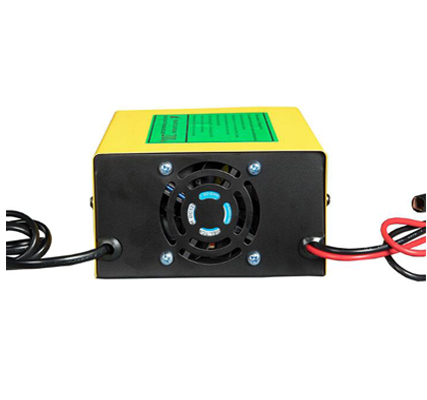

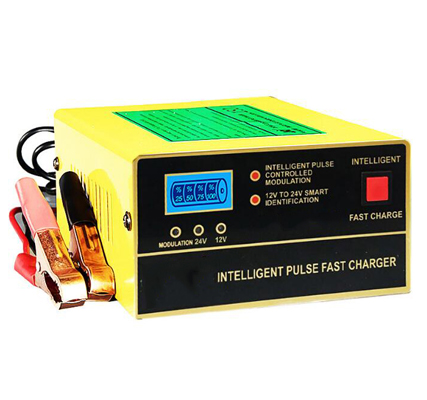

  • 12V/24V 10A Lead Acid Battery Charger
  • Product Model : YK-CD122410
  • Product Information :

    1. Input Voltage: AC220V±15% (AC150V-250V) 2. Frequency: 47-63hz 3. Work Efficiency: 88% 4. Input mode: Pulse 5. Output Voltage: 12V 24V automatic identification 6. Output Current: 10A 7. Suitable: 12V Lead acid Battery(8-14.5V); 24V Lead acid Battery(18-29V)

  • Information

1. Intelligent charging and repairing integrated charger
2. 12V 24V automatic identification
3. 10A | 15A |25A for option
4. Charge mode option : Intelligent charge and fast charge for switch
5. With Digital LED Display window show the charge voltage/Current
6. Multi protection : Short circuit protection/Reverse protection/Over-current protection/Overheating protection/Low voltage protection/Overvoltage protection

  • Character

1. Multi-function charger is widely used in 12v/24v battery, it can identify different kind of batteries in automatically
2. Multi-function charger Use the advanced pulse width modulation technology with three-stage battery charge in automatic function
3. Microcomputer power chip digital pulse restore to improving the battery life greatly.
4. With multiple protection.
5. Output short circuit protection & Overheating protect & Reverse connecting protection & Over current protection & Full charging automatic shutdown protection

  • Application

1. Multi-function charger is widely used in 12v/24v battery, it can identify different kind of batteries in automatically

2. Application Field: Motorcycle /Vehicle /SUV/TRUCK

  • Customize Range

Regards Lead Acid Battery Charger, we can customize below model.
Such as:

  1. 12VDC 24VDC 10A
  2. 12VDC 24VDC 15A
  3. 12VDC 24VDC 25A
  • Specification

Model : YK-CD122410 Smart charging and repairing integrated charger

INPUT

Input Voltage

AC220V±15% (AC150V-250V)

Frequency

47-63hz

Work Efficiency

88%

Input mode

Pulse

OUTPUT

Output voltage

12Vdc 24Vdc
12V 24V automatic identification

Output Current

10A

Suitable

12V Lead acid Battery(8-14.5V); 24V Lead acid Battery(18-29V)

Intelligent charging mode

Automatically detect battery demand, current adjustable , battery be full stop power

Automatic charging mode

Manually check battery temperature, if temperature is too higher , charger stop charging

Multi protection

Short circuit protection/Reverse protection/Over-current protection/Overheating protection/Low voltage protection/Overvoltage protection

WORK CONDITIONS

Operation temperature

-30℃ - +50℃

Operation humidity

5% to 95% RH Non-condensing

Fan noise

≤55Db

Max Altitude

10000m

Dimension & Weight

Dimension

17.5 *13.5*7.5cm,

Weight

0.8kg
