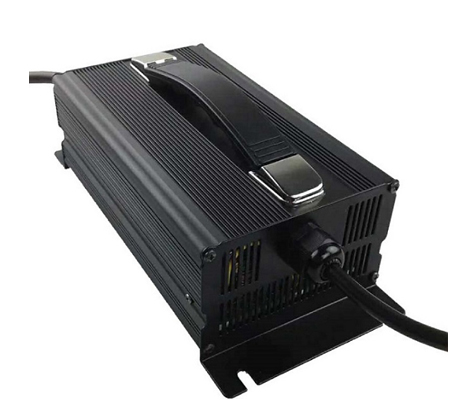

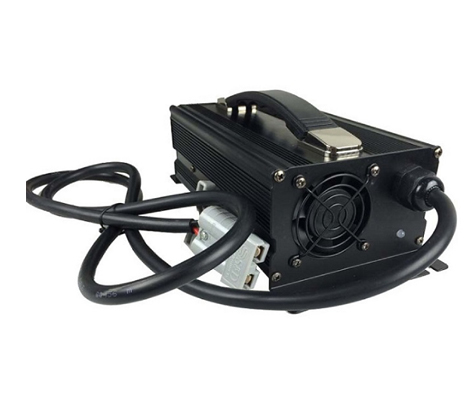

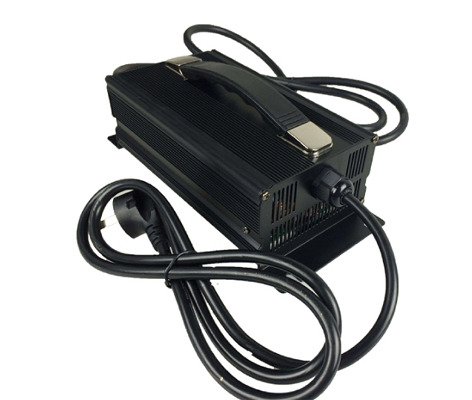

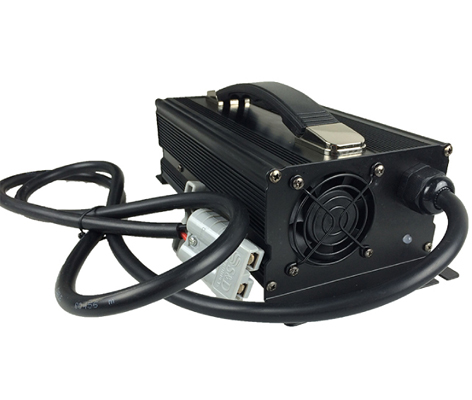

1200w Battery Charger for Lithium Battery/ Lead Acid Battery

1200W--12V 40A | 24V 30A | 36V 25A | 48V 20A | 60V 18A | 72V 15A
Product Model : 1200W Battery Charger
Product Information :
1. Input: 1 phase 200-240Vac or 1 Phase 110Vac 2. Input frequency : 50/60HZ 3. Output : For option  12VDC 10A  24VDC 30A  36VDC 25A  48VDC 20A  60VDC 18A  72VDC 15A 4. Suitable for lithium battery or Lead acid Battery 5. Multi Protection

Information

Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:

Big volume and high weight, not convenient for transportation and use
Lacking protection function, bad reliability
Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.

Character

Short-circuit protection: output current will cut off automatically when short-circuit.
Overload protection: Output Current Will Be Limited Automatically When Overload.
Reverse polarity protection: it will shut down until fuse or the fault removed.
3-stage charging mode: CC, CV and trickle (or Cut off) .
Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
LED Meter available: Show Charging Voltage and Charging Current.
All kinds of production has passed the CE certification and ROHS.
Efficiency: 94%( full capacity).

Application

1. E-Forklifts
2. Electromedical equipment
3. E-tools
4. E-Bikes
5. E-Motocycles
6. E-AGV
7. E-Sweeper
8. E-Cars

Customize Range

YK-CDXX YY Series	Input Voltage	Output Voltage	Output Current
YK-CD12**	100-240Vac	12V	5A
	110Vac±15%		8/15/25/30/35/40A
	220Vac±15%		8/15/25/30/35/40/50A
YK-CD24**	100-240Vac	24V	4/5A
	110Vac±15%		6/9/15/18/25/30A
	220Vac±15%		6/10/15/18/30/40/50A
YK-CD36**	110Vac±15%	36V	2.5/4A
	110Vac±15%		4/6/10/12/18/20/22A
	220Vac±15%		4/6/6/10/13/20/2535/40A
YK-CD48**	100-240Vac	48V	2/3A
	110Vac±15%		3/4.5/7.5/9/13/15/18A
	220Vac±15%		3/5/8/10/15/20/25/30A
YK-CD60**	100-240Vac	60V	1.5/2A
	110Vac±15%		2.5/3.5/6/7.5/10/13/13.5A
	220Vac±15%		2.5/4/6/8/12/18/20/27A
YK-CD72**	100-240Vac	72V	1.2/1.5A
	110Vac±15%		2/3/5/6/9/11/17A
	220Vac±15%		2/3.4/5/6.5/10/15/17/22A

Specification

Brand	YUCOO
Model Series	YK-CD XX YY XX--Output Voltage; YY--Output Current
Model list	YK-CD1240	YK-CD2430	YK-CD3625	YK-CD4820	YK-CD6018	YK-CD7215
Input Voltage	1 phase 200-240Vac Input
Frequency	50/60hz
Output Voltage	12V	24V	36V	48V	60V	72V
Output Current	40A	30A	25A	20A	18A	15A
Rate Power	480W	720W	900W	960W	1080W	1080W
Shell	Aluminum Alloy Shell
N.W/GW	2.1 kg/2.6 kg
Product dimension	22012075mm
Package dimension	632241.5cm/1pc
Suitable battery Type	Lead Acid / LiFePO4 /Li-ion Lipo battery voltage is 4.2V LiFePO4 battery voltage is 3.65V Lead acid battery voltage is 14.7V
Equal voltage (Lead acid)	14.7V	29.4V	44.1V	58.8V	73.5V	88.2V
Float voltage (Lead acid)	13.8V	27.6V	41.4V	55.2V	69V	82.8V
LiFePO4/3.65V Charge voltage	14.6(4s)	29.2(8s)	43.8(12s)	58.4(16s)	73(20s)	87.6V(24s)
Lipo/4.2V Charge voltage (S-Connect in series)	12.6(3s) 16.8(4s)	25.2(6s) 29.4(7s)	42/4.25(10s)	50.4(12s) 54.6(13s) 58.8(14s)	63.0(15s) 67.0(16s) 71.4(17s)	84V(20s)
Charging Principle	Full automatic transition CC,CV and Float/Cut-off
Charging Time	Cut-off point for Li battery is 5% of CC and it can be set between 3-10%.（charging time:4 hours）
Charging Time	Transition for Lead acid charger is 20% of CC.（charging time:6-8 hours）
High-Efficiency	≥90%
MTBF	≥50000h
Dielectric Strength	Input to shell ≥AC1500V
	Input to output ≥AC1500V
	Output to shell ≥AC500V
Operating Temperature	-20℃~50℃
Store Temperature	(-40～70)℃
Related humility	90％(40±2℃)
Protection Function	Over voltage / Over temperature / Over current/Short circuit and Reverse polarity Protect
Display	Two LED indicators
Advantage	Light/Small/Stable/Safe
AC Plug	Accept any plug base on your request
Warranty	1 year Warranty
