  • 48Vdc to 120/220V Series
  • Product Model : YK-**Z-48 Series
  • Product Information :

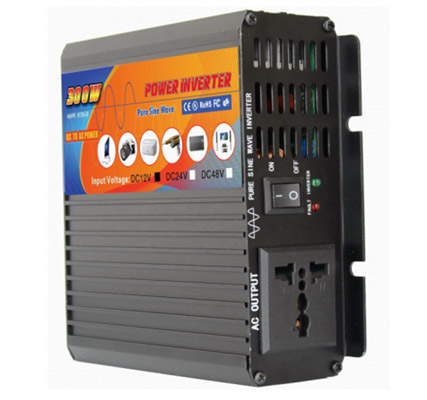

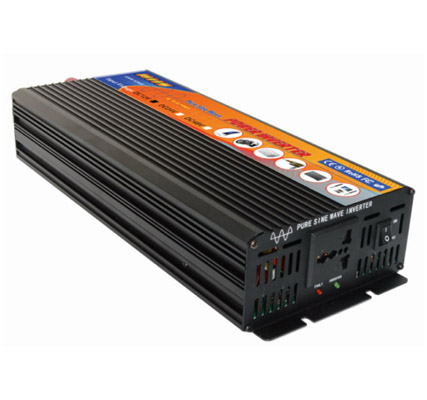

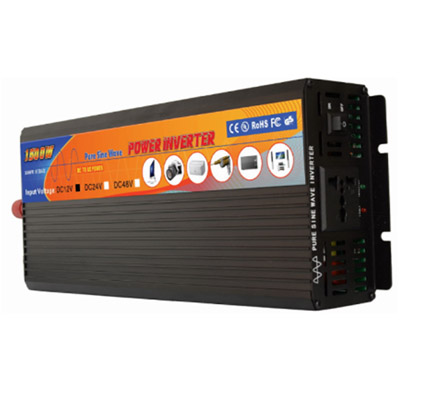

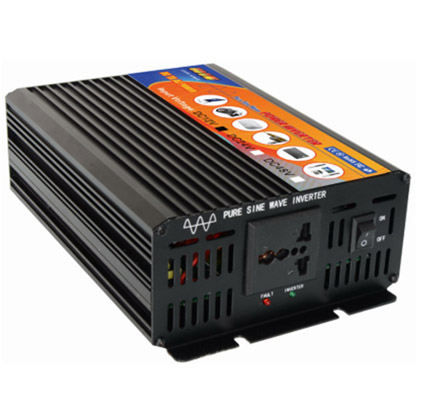

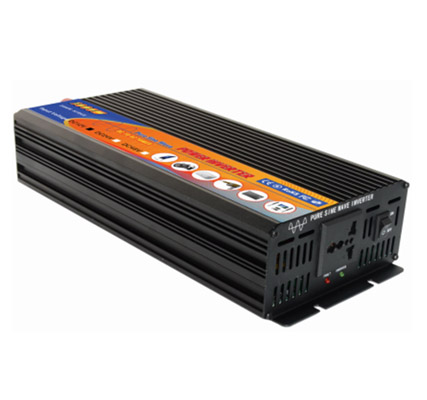

    YK-****Z-48 48Vdc-120/220vac 60/50hz 300W-4000W Pure Sine Wave Inverter 1. Input rate voltage: 48Vdc 2. Input range voltage : 40-60Vdc 3. Output : 220Vac 50hz or 120Vac 60hz 4. YK-300Z-48 Rate power : 300w , Peak power 600w 5. YK-600Z-48 Rate power : 600w , Peak power 1200w 6. YK-1000Z-48 Rate power : 1000w , Peak power 2000w 7. YK-1500Z-48 Rate power : 1500w , Peak power 3000w 8. YK-2000Z-48 Rate power : 2000w , Peak power 4000w 9. YK-3000Z-48 Rate power : 3000w , Peak power 6000w 10. YK-4000Z-48 Rate power : 4000w , Peak power 8000w 11. Pure Sine Wave Inverter

  • Character
1.         Efficiency: Up to 95%
2.        The service life of 12vdc/24vdc/48vdc -220vac home use inverter can reach a decade
3.        The working noise of 12vdc/24vdc/48vdc -220vac home use inverter is low and the efficiency is high
4.        Strong ability of resist concussion
5.        Good load ability:  Inductive and capacitive load
6.        Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/
7.        Output Short/Input polarity reverse/Overload



  • Application
1.        Solar electric energy generation;
2.        Wind power generation;
3.        In-car or on-boat devices series
4.        Communication equipment;
5.        Industrial control system;
6.        Small power supply system.
  • Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range


Input & Output voltage

Capacity

220vac output design

12vdc-220vac

300W 600W 1000W 1500W 2000W 3000W

24vdc-220vac

48vdc -220vac

120vac output design

12vdc-220vac

300W 600W 1000W 1500W 2000W 3000W

24vdc-220vac

48vdc -220vac

  • Specification

Model
YK-***Z-48 Series

300Z-48

600Z-48

1000Z-48

1500Z-48

2000Z-48

3000Z-48

4000Z-48

DC Input

Rate voltage

48Vdc

Range voltage

40-60Vdc

Output

Output Voltage

220Vac±5%

Output Frequency

50Hz±0.1%

Wave

Pure Sine wave

Output Power

300W

600W

1000W

1500W

2000W

3000W

4000W

Peak Power

600W

1200W

2000W

3000W

4000W

6000W

8000W

Conversion Efficiency

>90%

Protect function

Function-1

Input reverse connection protection: Fuse

Function-2

Input low voltage protection : 40Vdc±0.5V

Function-3

Input high voltage protection:  60Vdc±0.5V

Function-4

Over temperature protect: >75℃

Over load protection

320W

620W

1100W

1600W

2100W

3100W

4100W

Temperature

Storage temperature

-20~+70℃

Working temperature

-5~+45℃

Cooling method

Intelligent temperature controlled air cooling

Mechanical properties

Input terminal

Red/black copper terminal

Output socket

Universal socket

Housing material

Aluminum

Dimension(mm)

150*52*135

150*70*203

150*70*313

150*70*343mm

258*132*386mm

Net weight(kg)

0.9kg

1.8kg

3kg

4kg

4.5kg

11kg

11.5kg
