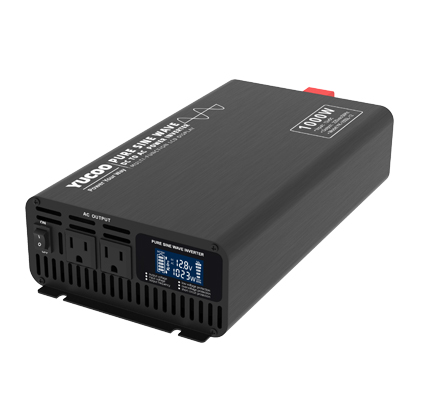

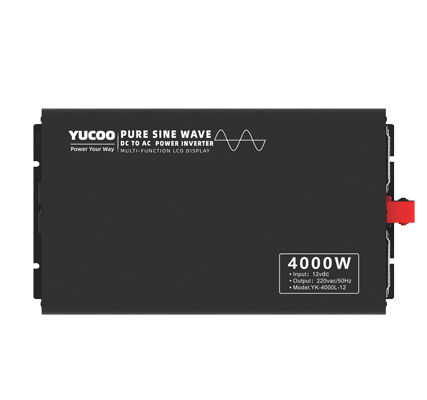

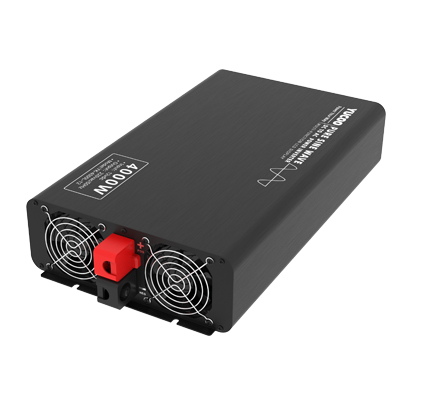

  • 60Vdc to 110/220Vac Series
  • Product Model : YK-**L-60 Series
  • Product Information :

    1. Input rate voltage: 60Vdc

    2. Input range voltage : 50-75Vdc

    3. Output :110Vac/220Vac 60/50Hz

    4. Waveform: Pure sine wave output

    (YK-600L-60) Rate power:600w, Peak power:1200w

    (YK-1000L-60) Rate power:1000w, Peak power:2000w

    (YK-1500L-60) Rate power:1500w, Peak power:3000w

    (YK-2000L-60) Rate power:2000w, Peak power:4000w

    (YK-3000L-60) Rate power:3000w, Peak power:6000w

    (YK-4000L-60) Rate power:4000w, Peak power:8000w

    (YK-5000L-60) Rate power:5000w, Peak power:10000w

  • Information

1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

3. It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

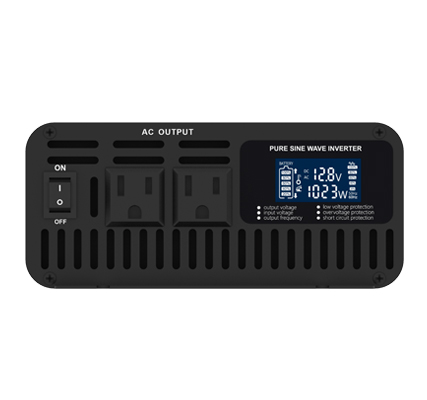

4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5. Stable performance, safe and reliable, long service life.



  • Character

1. Efficiency: 85%-92%

2. The service life can reach a decade

3. Working noise is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability:  Inductive , capacitive load and Hybrid load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Input polarity reverse/Overload

  • Application

 1. Solar electric energy generation;

2. Wind power generation;

3. In-car or on-boat devices series;

4. Communication equipment;

5. Industrial control system;

6. Small power supply system.

  • Customize Range

Regard as the inverter we can customize different specification according to your request

Input: 12Vdc/24Vdc/48Vdc/60Vdc /72vdc

Output: 110Vac/220Vac 60/50Hz

Rate Power :300W/600W /1000W/1500W/2000W/3000W/4000W/5000W

  • Specification



Model

YK-**L-60 Series

600L-60

1000L-60

1500L-60

2000L-60

3000L-60

4000L-60

5000L-60

Display

LCD Display

DC Input

Rate voltage

60Vdc

Range voltage

50-75Vdc

Output

Output Voltage

110Vac or 220vac±5

Output Frequency

50Hz or 60Hz±0.1%

Wave

Pure Sine wave

Output Power

600W

1000W

1500W

2000W

3000W

4000W

5000W

Peak Power

1200W

2000W

3000W

4000W

6000W

8000W

10000W

Conversion Efficiency

90%

Protect function

Function-1

Input reverse connection protection: Fuse

Function-2

Input low voltage protection : 50Vdc±0.3V

Function-3

Recovery voltage : 60V(65V±0.3)

Function-4

Input high voltage protection: 75Vdc±0.3V

Function-5

Over temperature protect: 80°±5°

No-load current

0.3A

0.6A

0.7A

0.7A

1.0A

1.0A

1.0A

Over load protection

660±50W

1100±50W

1650±50W

2200±50W

3300±50W

4000±50W

5000±50W

Total Harmonic Distortion

≤3%

Working temperature

-5+50

Storage temperature

-20+70

Cooling method

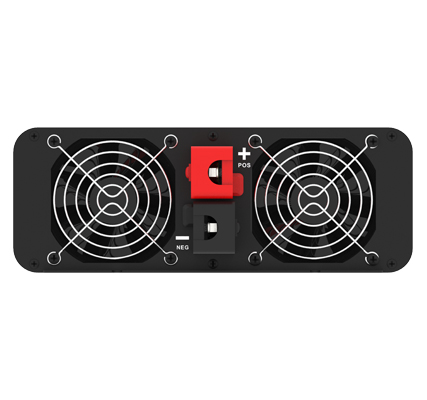

Intelligent temperature controlled air cooling

Mechanical properties

Input terminal

Terminal form

Output socket

According request

Housing material

Aluminum

Size(mm)

200*173*76

310*173*76

340*173*76

360*173*76

400*242*88

400*242*88

420*242*88

Weight (kg)

2.1

3.2

3.5

4.5

8.5

9.5

10.5
