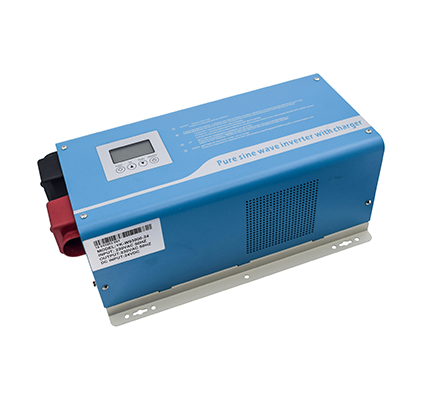

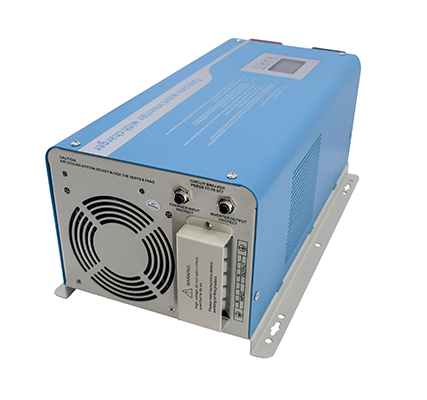

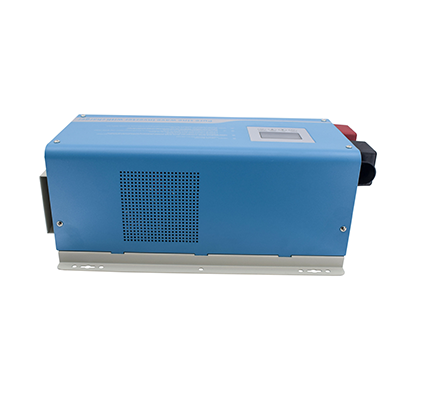

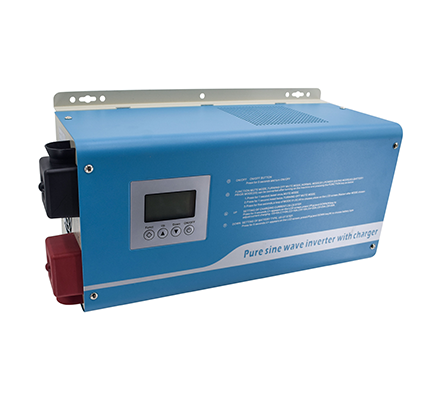

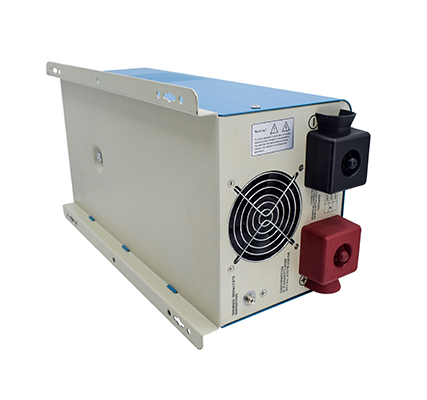

  • 12Vdc to 110/220Vac Series
  • Product Model : YK-W9 series
  • Product Information :

    1. Input : 12Vdc input & 220Vac bypass input

    2. Output : 220Vac 50Hz

    3. Tower type

    4. With battery charger function +With AVR function+UPS function

    5. Working mode selectable: mains first/solar first/save mode

    (Outout Can make 120Vac 60Hz, 110Vac 60Hz, 230V 50Hz , 240V 50Hz)

  • Information

1. Double CPU intelligent control technology, excellent performance;

2. RS232 communication port optional;

3. Pure sine wave AC output and be adapt to all kinds of loads;

4. Low frequency transformer, input and output isolated design;

5. Three working mode(the grid mode/energy-saving mode/battery mode could be set,) application flexible;

6. With built in battery charger Max 30Acharge current/battery type could be set, convenient and practical;

7. Intelligent fan control, safe and reliable;

8. Horizontal type novel design, easy installment, space saving;

9. LCD display equipment parameter in real-time, operation status be clear at a glance;

10. Output overload, short circuit protection, various of automatic protection and alarm warning.

  • Character

 ● Low frequency

● AVR function

● UPS function

● LCD display

● Charging current 0A~30A self optional

● Grid mode/energy-saving mode/battery mode

● Battery type self optional

● R232 port optional

● Generator compatible

  • Application

1. Solar electric energy generation;

2. Wind power generation;

3. In-car or on-boat devices series;

4. Communication equipment;

5. Industrial control system;

6. Small power supply system.

  • Customize Range

Regard as the inverter we can customize different specification according to your request

Input: 12Vdc/24Vdc/48Vdc/96Vdc

Output: 110Vac/120Vac/220Vac/230Vac 60/50Hz

Rate Power :1000W/1500W/2000W/3000W/4000W/5000W/6000W/8000W

  • Specification



TypeYK-W9 series

1KW

2KW

3KW

4KW

5KW

6KW

8KW

Rated power

1000W

2000W

3000W

4000W

5000W

6000W

8000W

Battery

Rated voltage

12VD/24VDC /48VDC

24VDC/48VDC

24/48/96VDC

48/96

VDC

48/96

VDC

Charge current

30Adefault-C0-C6 can be set (0A 5A 10A 15A 20A 25A 30A)

Battery type

U0-U7 can be set

U0

Gel U.S.A

13.7V

U1

A.G.M.1

13.4V

U2

A.G.M.2

13.7V

U3

Sealed lead Acid

13.6V

U4

Gel European

13.8V

U5

Open lead acid

13.8V

U6

Calcuim(open)

13.6V

U7

De sulphation cycle 15.5 for 4 hrs

Input

Voltage range

85-138VAC;170-275VAC

Frequency

45-65Hz

Output

Voltage range

110VAC;220VAC±5%( Inverter mode)

Frequency

50/60Hz±1%( automatic identification)

Output wave

Pure sine wave

Switching time

10ms( typical load)

Efficiency

85%80% Resistance load

Overload

110-120% power load 30S protect;>160%/300ms

Protection

Battery overvoltage/lowvoltage, overload, short circuit protection, overtemperature protection, etc.

Operating ambient temperature

0~40℃

Storage ambient temperature

-15 - +50℃

Operating/Storage ambient

0-90% No condensation

Machine Size: L*W*H (mm)

486*247*179

555*307*189

653*332*260

Package size: L*W*Hmm

550*310*230

640*370*240

715*365*310

Net weight/Gross weight(Kg)

11/13

14/16

16/18

23/27

26/30

30/34

53/55
